Before & After Photos

The homeowner in Sea Girt, NJ, experienced comfort issues on the second floor. Upon conducting a free inspection, we discovered that the attic was in poor condition. Our team took action by air sealing the attic using ZypFoam sealant, sealing and encapsulating leaky ducts, installing can light covers to seal the can lights, adding SiverGlo rigid foam boards to insulate adjoining walls, properly incorporating baffle vents for ventilation, and blowing in TruSoft cellulose insulation to achieve an R-60 value. These measures significantly enhanced the home's comfort and energy efficiency for the homeowner.

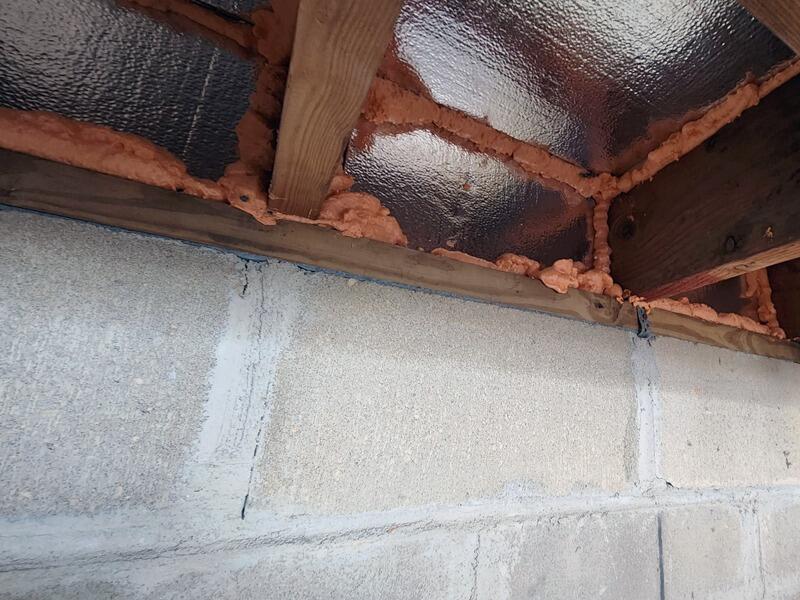

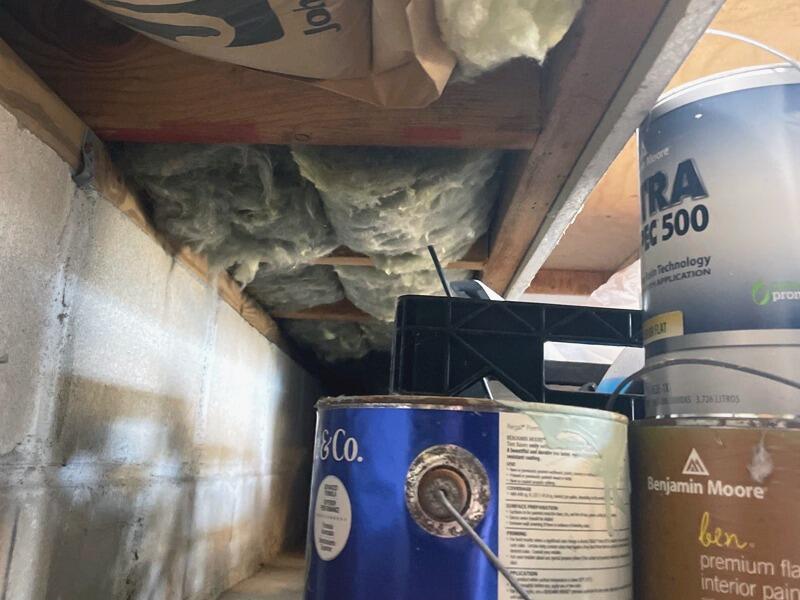

In Sea Girt, NJ, a homeowner was dealing with cold floors and an uncomfortably chilly home during the winter. Our inspection revealed that a cantilever in the garage was poorly insulated, allowing cold outside air to seep into the garage and leak through the cantilever. The existing fiberglass insulation was ineffective—simply stuffed in place with the joist bay behind it completely empty. We also found a crawl space behind the cinderblock wall that required proper insulation. To fix the problem, we insulated the cantilever with SilverGlo foam boards and sealed them with foam sealant, while also addressing the crawl space. These improvements have made the home noticeably warmer and more comfortable, while helping the homeowner save on energy bills.

This home is a 100+ year old house on a slab, with minimal storage space. The customer also had comfort issues, to hot upstairs in the summer.  The before picture shows the attic space used for storage along with the central heating and coolng system in the attic. This is very inefficient space for storage of mechanical systems. It gets up to 140 degrees in the summer. The AFTER pictures shows a completed super attic, where the air and thermal boundry is moved to the roof line, bringing the space inside. Now the attic is always with a few degrees of the conditioned space below and suitable for storage. This solution provides excellent insulation performance and maintains a fully vented roof assembly. Nice

Our customer in Spring Lake, NJ contacted us for their poorly insulated attic. The homeowner’s were experiencing uncomfortable and drafty rooms. A poorly insulated attic floor allows heat from your living space to be lost to the outdoors through the vented attic.

Our complete Attic SuperDeck treatment is an innovative solution that air seals and insulates the top of your home while providing the maximum storage space possible.

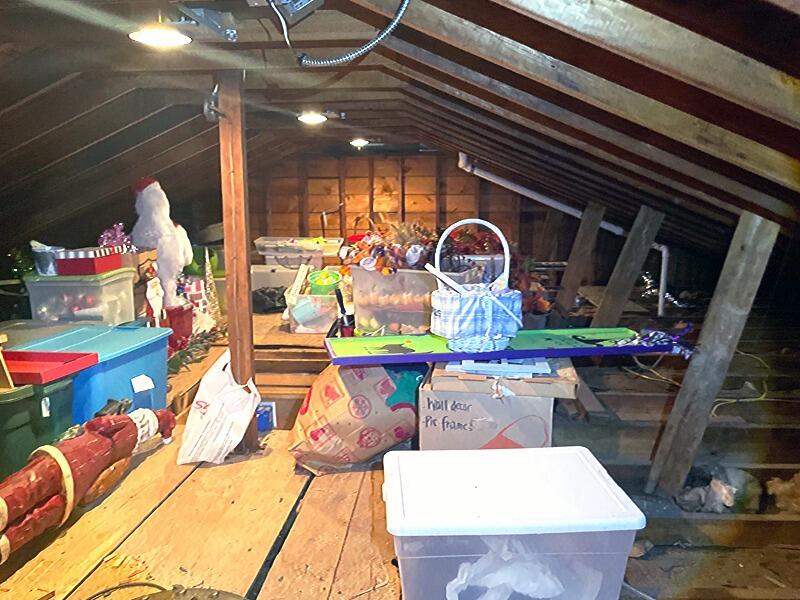

Looking at the before picture we can see plywood and wooden planks over the attic floor. If the ceiling joists are not filled with insulation we then use our TruSoft cellulose insulation to fill them in. Next our team installed 4 inch rigid insulation foam boards called SilverGlo. Our SilverGlo is installed across the bulk of the attic floor and sealed to provide an R-41 value of insulated storage decking.

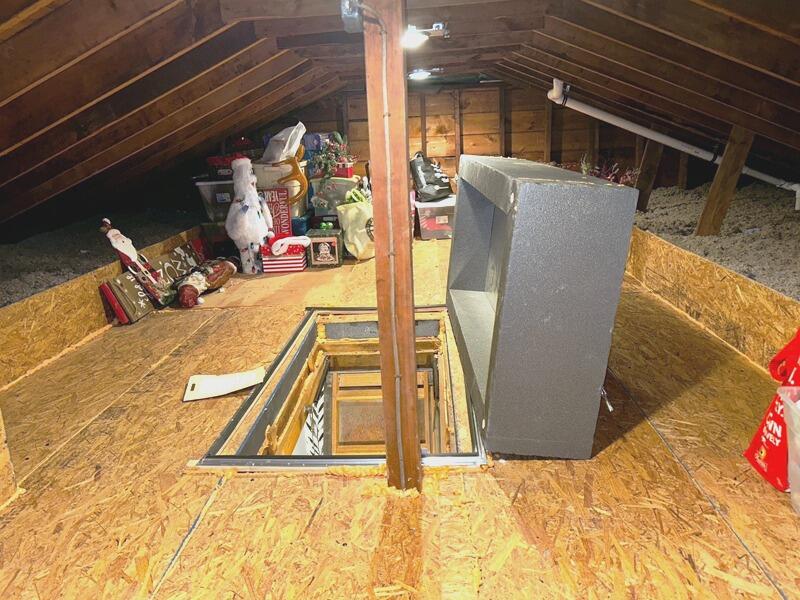

Finally as seen in the after picture we use wood sheets that are installed with special long screws over the SilverGlo to complete this project. The results create a much warmer, more comfortable home, lower fuel and electric bills, home easier to heat and cool, lots of attic storage.

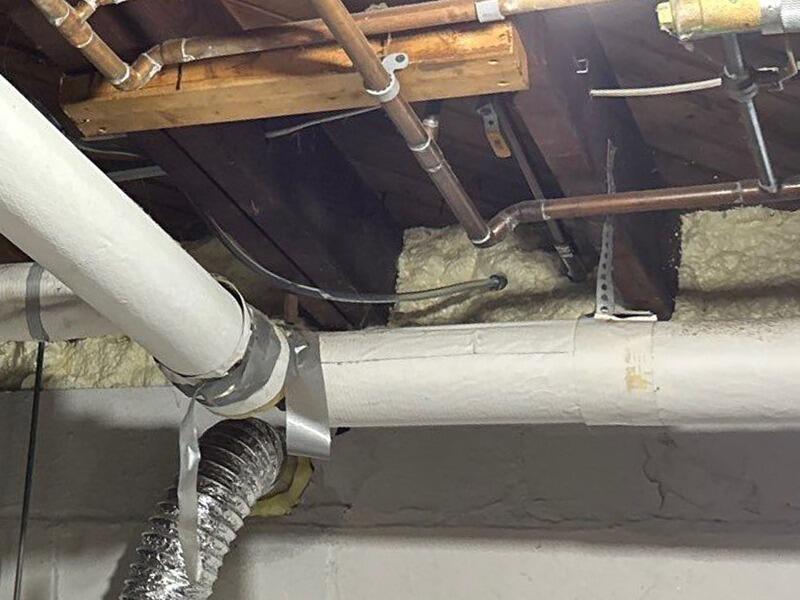

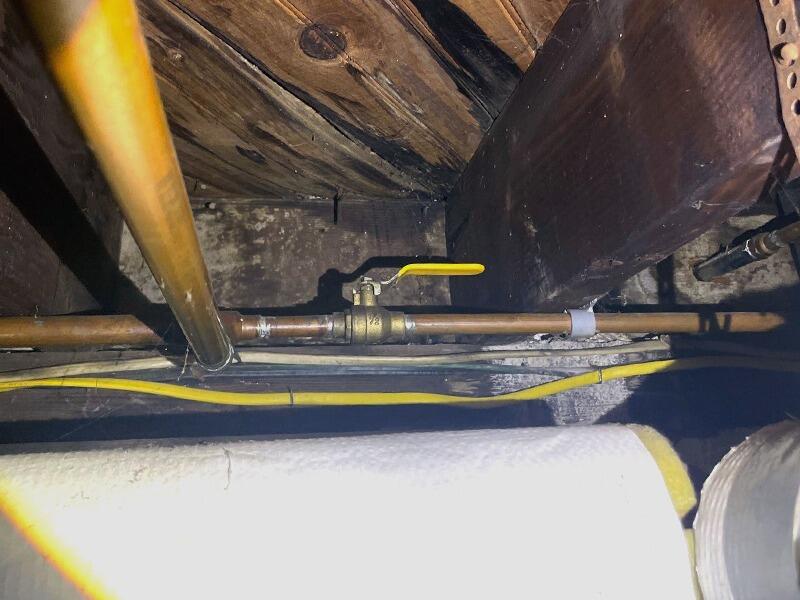

These customers floors were too cold. Their rim joist (the floor's framing system) was barely protected from air passing through the gaps between the wood because there was just a thin piece of fiberglass stuck up there. This left the basement and the floors above it to always feel colder than the rest of the house. Dr. Energy Saver has a simple solution to this prevelant issue, we spray over 2" of closed cellspray foam over the joist to ensure that no air can move between the boards.
